JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE
British style. Stereo jack. 6 PC board terminals, switched. Used in modern Marshall™
amps as well as many other brands. Used in many PA and recording consoles,
Marshall™ bass heads With nut and washer. Also may be
used as a replacement for the "No Longer Available" footswitch and CD input
jacks jacks on the MG50DFX, MG100DFX and MG100HDFX. We also have
replacement red colored nuts for use on this jack when used as a speaker jack on
later model Marshall™ amps. See farther down this page for the
J-5NTR nuts.
Part #J-504 |
$2.15 |
|
Click on photo for
larger view |
WASHER, FOR BRITISH STYLE (CLIFF) JACKS.
This washer goes behind the faceplate on British style plastic nut and
chrome nut jacks to provide proper spacing. Jacks come with the
washers included, but the washers are easily lost. Without the washers,
the jacks will not fit properly.
Part #W-583 |
$0.18
Each |
|
Click on photo for
larger view |
 JACK,
1/4", STEREO PC MOUNT PLASTIC, BRITISH STYLE WITH NICKEL NUT AND CHROME TRIM RING
6 PC board terminals, switched. Used in many brands of amps and other
equipment. Same footprint as J-504 jack - may be used in place of
J-504 to add a touch of "chrome" class to your amp!
Part #J-604 |
$2.99
(per jack) |
|
Click on photo for
larger view |
SAVE WITH MULTIPACK! JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE,
PACK OF 6
Stereo jack. 6 PC board terminals, switched. Pack of 6 jacks, with
nuts and washers.
Part #J-504-6 |
$10.99
(Set of 6 jacks) |
|
|
Click on photo for
larger view |
SAVE WITH
OUR
MULTIPACK ASSORTMENT! THIS PACK CONTAINS THREE J-503 (4 PIN) AND THREE J-504 (6-PIN)
JACKS.
Many amps contain both the 4 pin and the 6 pin British jacks. This
assortment gives you 3 of each jack ... Three J-503, and three J-504.
Part # J-5034-6 |
$10.49
(For 3 J-503 Jacks and 3 J-504 Jacks)
|
|
Click on photo for
larger view |
JACK, 1/4",
T/R/S PC MOUNT PLASTIC, BRITISH STYLE, WITH EMI/RFI GROUND WASHER.
Same as the J-504, with the addition of a special ground washer which
contacts the chassis AND is inserted into the ground connection of the PC board
via dual pins under the jack. 6 PC board terminals for signal, plus
2 additional terminals for the ground washer. Only for
amplifiers so equipped for this jack, designed
to
reduced EMI/RFI interference (radio stations, ground loops). Found in some
Marshall solid state amps, as well as other brands. Note:
Must be used only on amps designed for this type of jack that have the PCB holes
to accept the pins of the ground washer. Nut is included.
Part #J-504GW |
$2.89 |
|
Click on photo for
larger view |
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE, EXTRA-TALL LEGS.
May be used as a replacement for the footswitch jack on the Marshall™
MG100HDFX. 6 pins, PC mount, with nut and washer. Note extended straight pins as shown in photo, causing the jack to sit about 1/8" above the PC board.
Part #J-504SL |
$3.95 |
|
Click on photo for
larger view |
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE - WHITE
Identical to the J-504 above, except in white. How cool is that!
Stereo jack. 6 PC board terminals, switched. Used in modern Marshall™ amps, as well as many other brands. Used in many PA and recording consoles, Marshall™ bass heads, Line 6™ amps, and "rack" units. With nut and washer.
Part #J-556 |
$3.99
|
|
Click on photo for
larger view |
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE
4 PC board terminals, switched. Used in many modern Marshall™TM
amp models, including the JCM900 series, JCM2000 series, the Valvestate Series 1
models, and several others. Also used in many others brands of amps.
With nut and washer. Marshall part number J3B6005A or S122.
Part #J-503 |
$1.99 |
|
Click on photo for
larger view |
JACK,
1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE WITH NICKEL NUT AND CHROME TRIM RING
4 PC board terminals, switched. Used in many brands of amps and other
equipment. Same footprint as J-503 jack - may be used in place of
J-503 to add a touch of "chrome" class to your amp!
Part #J-603 |
$2.79
(per jack) |
|
Click on photo for
larger view |
SAVE WITH MULTIPACK! JACK, 1/4", MONO PC MOUNT PLASTIC,
BRITISH STYLE,
PACK OF 6
4 PC board terminals, switched. Used in many modern Marshall™TM
amp models, including the JCM900 series, JCM2000 series, the Valvestate Series 1
models, and several others. Also used in many others brands of amps.
Marshall part number J3B6005A or S122. Pack of 6 jacks.
Part #J-503-6 |
$9.99
(Set of 6 jacks) |
|
Click on photo for
larger view |
JACK, 1/4", MONO PC MOUNT PLASTIC,
BRITISH STYLE, WITH EMI/RFI GROUND WASHER.
Same as the J-503, with the addition of a special ground washer which
contacts the chassis AND is inserted into the ground connection of the PC board
via dual pins under the jack. 4 PC board terminals for signal, plus
2 additional terminals for the ground washer. Only for
amplifiers so equipped for this jack, designed
to
reduced EMI/RFI interference (radio stations, ground loops). Found in some
Marshall solid state amps, as well as other brands. Note:
Must be used only on amps designed for this type of jack that have the PCB holes
to accept the pins of the ground washer. Nut is included.
Part #J-503GW |
$2.59 |
|
Click on photo for
larger view |
JACK, 1/4", MONO PC MOUNT
PLASTIC, BRITISH STYLE, RED NUT, REPLACEMENT FOR Marshall™ SPEAKER JACKS.
4 PC board terminals, switched. Used in
modern Marshall™TM
amp heads (JCM2000 series TSL and DSL, for example) as the output jack for the
speaker cabinet. With red nut and washer.
Part #J-503R |
$2.39 |
|
Click on photo for
larger view |
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE, EXTRA-TALL LEGS.
May be used as a replacement for the rear panel jacks FX loop jacks on
the Marshall™ MG100DFX and also as the speaker jacks on the MG100HDFX. 4 pins, PC mount, with nut and washer. Note extended straight pins as shown in photo, causing the jack to sit about 1/8" above the PC board.
Part #J-503SL |
$3.45 |
|
Click on photo for
larger view |
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE - WHITE
Identical to the J-503 above, except in white. How cool is that! Mono input jack. 4 PC board terminals, switched. Used in modern Marshall™ amps, as well as many other brands. With nut and washer.
Part #J-555 |
$3.99
|
|
Click on photo for
larger view |

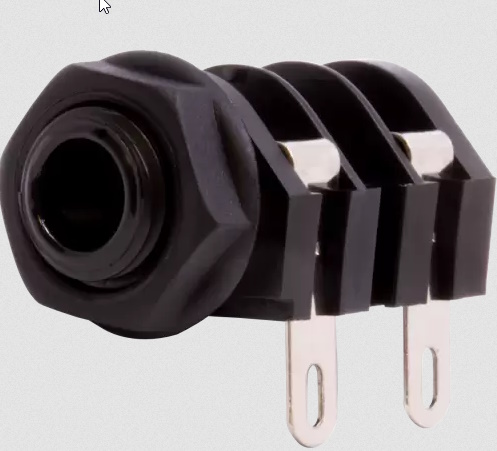

JACK, 1/4", MONO PLASTIC,
BRITISH STYLE, SOLDER TERMINALS, CHROME NUT
4 solder terminals, switched. Used in "hand-wired" British amps, as well as other brands. Chrome nut has male threads, jack has female threads. With nut and washer.
Original Cliff UK part number CL1298A.
Part #J-501 |
$3.99 |
|
Click on photo for
larger view |
JACK, 1/4", STEREO PLASTIC,
BRITISH STYLE, SOLDER TERMINALS, CHROME NUT
6 solder terminals, switched. Used in "hand-wired" British amps, as well as
other brands. Chrome nut has male threads, jack has female threads. With
nut and washer.
Part #J-501-S |
$3.99 |
|
Click on photo for
larger view |
JACK, 1/4", MONO PLASTIC,
BRITISH STYLE, SOLDER TERMINALS, REPLACEMENT FOR Marshall™
4 solder terminals, switched. Used in "hand-wired" Marshall™TM amps, as well as other brands. With nut and washer.
We also have replacement red colored nuts for use on this jack when used as a
speaker jack on later model Marshall™ amps. See farther down this
page for the J-5NTR nuts. Original Cliff UK part number CL1160A.
Part #J-502 |
$1.99 |
|
Click on photo for
larger view |
JACK, 1/4", STEREO PLASTIC,
BRITISH STYLE, SOLDER TERMINALS, REPLACEMENT FOR Marshall™
6 solder terminals, switched. Used in "hand-wired" Marshall™TM amps, as well as other brands. With nut and washer.
We also have replacement red colored nuts for use on this jack when used as a
speaker jack on later model Marshall™ amps. See farther down this
page for the J-5NTR nuts. Original Cliff UK part number CL1220A
Part #J-505 |
$2.50 |
|
Click on photo for
larger view |
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE, STRAIGHT LEG (NOT L-LEG!)
Common input jack found in some "boutique" and independent brand amps,
as well as Marshall™ . NOT used in Crate™, Ampeg™. 4 PC board terminals. Chrome nut has male threads, jack has female threads. Leads from jack come straight down from the contacts to go into the PC board. With nut and washer.
Part #J-580 |
$3.99 |
|
Click on photo for
larger view |
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE, STRAIGHT LEG (NOT L-LEG!)
Common input jack found in some "boutique" and independent brand amps, as well as
Marshall™ and Dunlop™/MXR products. NOT used in Crate™, Ampeg™
(see J-581L for those). 6 PC board terminals. Chrome nut has male threads, jack has female threads. Leads from jack come straight down from the contacts to go into the PC board. With nut and washer.
Part #J-581 |
$4.49 |
|
Click on photo for
larger view |
JACK NUT, PLASTIC,
BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Note: Replaces most black plastic jack nuts EXCEPT for
Roland. Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and
J-504L jacks. Also fits the J-518 and J-519 jacks.
Part #J-5NT |
$0.50 |
|
Click on photo for
larger view |
JACK NUT MULTI-PACK - SAVE!
6 JACK NUTS, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Note: Replaces most black plastic jack nuts EXCEPT for
Roland. Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and
J-504L jacks. Also fits the J-518 and J-519 jacks.
Part #J-5NT-6 |
$2.39 |
|
Click on photo for
larger view |
JACK NUT, PLASTIC,
BRITISH STYLE, RED
Replacement nut for the J-503, J-504.
Red nuts on these jacks typically are used on later model Marshall™ amps to
designate the 'speaker' jacks.
Part #J-5NTR |
$0.89 |
|
Click on photo for
larger view |
JACK NUT, PLASTIC,
BRITISH STYLE, WHITE
Replacement nut for the J-555 and J-556 jacks.
Will also fit the J-502, J-503, J-504, J-505, J-503L and J-504L black jacks, if you wish to create a two-tone effect.
Part #J-5NTW |
$0.60
|
|
Click on photo for
larger view |
 JACK
NUT/FERULE, CHROME, with BLACK PLASTIC BEZEL/WASHER - BRITISH CLIFF STYLE
Replacement nut and bezel washer for the J-501, J-501S, J-580, J-581, J-580L and J-581L jacks.
Note: The threads on this nut are coarse (3/8-20), and are for
genuine Cliff jacks. Note:
There are some generic jacks on the
market with finer thread nuts.
This nut will not fit those jacks. This nut is for
BRITISH CLIFF STYLE jacks. Bezel is
included with this nut.
Part #JN-200W |
$0.95 |
|
Click on photo for
larger view |
JACK
NUT/FERULE, BLACK, with INTEGRAL BLACK PLASTIC BEZEL - BRITISH STYLE
Replacement nut and bezel washer which will fit the J-501, J-501S, J-580, J-581, J-580L,
and J-581L jacks.
Note: The threads on this nut are coarse (3/8-20), and are for
genuine Cliff UK jacks. Note:
There are some generic jacks on the
market with finer thread nuts.
This nut will not fit those jacks. This nut is for
genuine Cliff UK jacks. Bezel is integral to the nut and cannot be
removed. This is the jack nut used on the Marshall JMP-1 Preamp, and
on some versions of the Marshall DRP-1 Direct Recording Preamp.
Part #JN-864 |
$0.79 |
|
|
 |
NUT AND WASHER, CHROME, KOBICONN
OR JALCO TYPE.
Fits J-506, J-506A, J-507, J-530, J-531
, J-532, J-533, J-533G,
J-539, J-539G, J-540, J-545, J-6074, J-6075, J-560, J-9158.
Part #JN-916 |
$0.75 |
|
|
Click on photo for
larger view
|
 JACK, 1/4", Marshall™ ORIGINAL, MG SERIES,
6 Pins
Used in the Marshall™ G50RCD, G80RCD and G100RCD as the input jack.
6 pins, as shown in the photo. No trim ring on the front of jack - only
black plastic. Low profile design. Used
only in the G50RCD, G80RCD, and G100RCD.
Includes nut and washer.
Part # J-530 |
$6.75 |
|
|
Click on photo for
larger view
|
JACK, 1/4", 7-PIN, HEADPHONE,
USED IN Marshall™, FENDER™, YAMAHA™ & OTHERS, PC MOUNT
Used as the headphone jack in the Marshall™ G15RCD and G30RCD.
Original Marshall™ part number V4550. Used as the headphone jack in Yamaha models YPR6, HE6, PSR520, YPR8, and
other models. Original Yamaha part number LB10187R. Used
in the Fender Sidekick Bass Amp as the headphone jack, Fender part number
022923. Used
in the Korg Triton Studio, Triton extreme, M3, CI8600, CI9600. Korg part
number 454005600, YKB21-5006. Casio Part # 36120665. Note: No trim ring at jack opening.
Includes nut and washer.
Part # J-540
|
$6.70 |
|
Click on photo for
larger view |
JACK, 1/4", MARSHALL,
MONO, 3 PINS
Used as the input jack in the Marshall G10 MKII. Marshall
part number V9158. No trim ring at the mouth of the jack - black
plastic. Includes nut and washer.
Part #J-9158
|
$6.70 |
|
|
Click on photo for
larger view |
JACK,
9-PIN Low Profile, 1/4", Marshall™, Chrome Trim Ring
Used as the
Effects A return jack and Effects B return jack on the rear panel of the
Marshall™ DSL-50, DSL-100, TSL122 and TSL-100. Chrome trim ring. Jack data here.
Nut and washer are included.
Replacement nut/washer set is the JN-916.
Part # J-560C |
$6.50 |
|
|
Click on photo for
larger view |
JACK,
9-PIN Low Profile, 1/4",
Marshall™,
Fender™, CHROME Trim Ring.
Used as the
Effects A return jack and Effects B return jack on the rear panel of the
Marshall™ DSL-50, DSL-100, TSL122 and TSL-100. Nut and washer are included.
CHROME trim ring. Jack data here.
Replacement nut/washer set is the JN-916.
Part # J-560 |
$6.50 |
|
|
Click on photo for
larger view |
JACK,
5-PIN Low Profile, 1/4", Marshall™Chrome Trim Ring.
Used as the Effects A send jack and
Effects B send jack on the rear panel of the Marshall™ DSL-50, DSL-100, TSL-122 and
TSL-100. Nut and washer are included. Note: Chrome trim ring on face of jack.
Part # J-565C |
$6.70 |
|
|
Click on photo for
larger view
|
JACK, 1/4",
TIP/SLEEVE 3 PIN, PC MOUNT, Used in Fender™
Squire and Sidekick Amps from the Rivera-era (80s, early 90s)
PC mount 1/4" jack. Mono, 3 pin. Also used in some Fender™ Squire™ amps,
such as the Champ 12 Champ 15, 15G and Sidekick 15 and 15B. Used in the Marshall™
MS-2 Mini Amp. Nut and washer are included. Replacement nut/washer
set is the JN-916.
Part # J-506B |
$5.95 |
|
Click on photo for
larger view
|
JACK, 1/4", Marshall™
G SERIES, INPUT, LINE OUT, FOOTSWITCH, PC MOUNT,
HAS RED STRIPE, ALSO USED IN YAMAHA, KORG, FENDER. MONO,
SWITCHED.
Used in certain Marshall™ G-series amps from the late 90s -
compare with original jack. Back legs are slightly staggered -
not positioned directly across from each other. Check the
back of the existing jack - if the back is red and the back legs are
staggered, this would be the correct replacement. Used as the input jack
and the line out jack in the Marshall™ G15RCD. Used as the input, line out
and footswitch jack in the Marshall™ G30RCD. Used as the line out,
footswitch, FX send and return jacks in the Marshall™ G50RCD. Used as the
input jack on certain Fender™ SideKick amps, such as the SideKick Chorus
20. Also used in Korg and Yamaha keyboards - Korg part number 454X851003,
Yamaha part number LB202330.
NUT & WASHER
NOT INCLUDED - REUSE ORIGINAL OR ORDER JN-916
Part #J-531
|
$4.75 |
|
Click on photo for
larger view
|
JACK, 1/4", Marshall™
G SERIES, INPUT, LINE OUT, FOOTSWITCH, PC MOUNT,
HAS RED STRIPE, ALSO USED IN YAMAHA, KORG, FENDER. MONO,
SWITCHED.
Used in certain Marshall™ G-series amps from the late 90s -
compare with original jack. Back legs are slightly staggered -
not positioned directly across from each other. Check the
back of the existing jack - if the back is red and the back legs are
staggered, this would be the correct replacement. NUT AND WASHER
ARE INCLUDED. Used as the input jack
and the line out jack in the Marshall™ G15RCD. Used as the input, line out
and footswitch jack in the Marshall™ G30RCD. Used as the line out,
footswitch, FX send and return jacks in the Marshall™ G50RCD. Used as the
input jack on certain Fender™ SideKick amps, such as the SideKick Chorus
20. Also used in Korg and Yamaha keyboards - Korg part number 454X851003,
Yamaha part number LB202330.
Part #J-531
|
$4.75 |
|
|
WITH CHROME TRIM RING
Click on photo for
larger view
|
JACK, 1/4", Marshall™ ORIGINAL, MG SERIES, USED AS CD OUTPUT JACK, PC MOUNT, ALSO USED IN YAMAHA,
KORG, ROLAND, ENSONIQ. CHROME SLEEVE.
Used in certain Marshall™ G-series amps
from the late 90s - compare with original jack. Used as the CD
input jack in the Marshall™ G15RCD and the G30RCD. Original Marshall™
part number J1031. Used for the Headphone output of the Roland S-50
and S-770 and for the Headphone and Ext. Control jack of the Roland U-220.
It also replaces all the jacks in the Korg 01/W and 01R/W, and the CV Pedal
jacks in the Ensoniq ESQ-1, ESQ-M, and SQ-80 keyboards. The jack is
equivalent to Roland part # 13449148 (YKB21-5009), Korg part # 454004400, and
Behringer part # W64-01081-03178. Used in the Behringer V-Amp and
P16-M. The chrome sleeve at the jacks opening is cosmetic. The jack will replace
equivalent jacks that have a gold sleeve or no sleeve. Nut and
washer are included. Replacement
nut/washer set is the JN-916.
Part #J-532
|
$4.75 |
|
|
4-PIN, WITH CHROME TRIM RING
Click on photo for
larger view |
JACK, 1/4", STEREO, 4-PIN
SWITCHED, MADE BY KOBICONN OR JALCO, USED IN KORG, YAHAMA & OTHERS, PC MOUNT
This
4-pin, PC mount, 1/4" stereo phone jack has a normally closed tip shunt and is
used in a variety of amps and keyboards made by Ensoniq, Marshall™, Ibanez,
Casio, Korg, Roland and others. Used in the Ibanez Super Metal SML stomp box, and
the Casio Privia PX-310 keyboard. It also replaces the Ensonq SQ-1,
SQ-2 and SQ-R jacks and the Ensoniq ESQ-1 and ESQ-M Output jacks, Tape In & Out
jacks, and Sequencer Footswitch jack. Also replaces the Aviom
A16II-HP output jack. Shure part number 95B8329.
This jack replaces Korg part #454004400 (YKB21-5010) and Roland part #13449263
(YKB21-5005). Nut and washer are included. Replacement
nut/washer set is the JN-916.
Part #J-533
|
$4.75 |
|
|
3 PIN, WITH CHROME TRIM RING
Click on photo for
larger view |
JACK, 1/4", MONO, 3-PIN, INPUT, MADE BY KOBICONN, Used in Marshall™, Korg, Yamaha, Roland,
Behringer & others, PC Mount.
Chrome
sleeve around jack entrance. Gold sleeve also available, see J-539G. Korg
part number 454004300. Behringer part number W64-01382-03176.
Roland part number 13449146. Nut and washer are included. Replacement
nut/washer set is the JN-916.
Part #J-539 |
$5.75 |
|
Click on photo for
larger view |
MARSHALL MINI-JACK, STEREO, 3.5mm
Used as the Line Out, Headphone, or Music Source
Input Jack on the MG15CFX, MG30CFX, MG50CFX, MG100CFX, MG15FX, MG30FX, MG50FX,
MG100FX, MG15GFX, MG30GFX, MG50GFX, MG100GFX. Accepts 1/8 inch or
3.5mm stereo mini-plugs.
Part #J-355 |
$2.50 |
|
|
Click on photo for
larger view |
 Marshall™ STYLE JACK PLATE, STEREO / MONO
Marshall™ style reproduction jack plate as found on the
Marshall™ 1960A, 1960B, Vintage Modern 425A or 425B Marshall™ 4x12
cabinets. Replaces Marshall part number M-196X-50-01. Includes
speaker wires terminated in 1/4" push-on connectors. Made in the USA
by Mojo.
Part #JP-800R |
$49.95 |
|
|
Click on photo for
larger view |
 Complete
Genuine Marshall™ JACK PLATE, STEREO / MONO
Marshall™ jack plate as found on the
Marshall™ 1960A, 1960B, Vintage Modern 425A or 425B Marshall™ 4x12
cabinets. Marshall part number M-196X-50-01.
Part #JP-800 |
$62.95 |
|
|
Click on photo for
larger view |
Marshall™
JACK PLATE REPAIR KIT
Replaces the common failure parts on
the JP-800 mono/stereo jack plate (shown above) as found on the 1960A, 1960B,
Vintage Modern 425A or 425B Marshall™ 4x12
cabinets. Kit contains both jacks and a new mono/stereo select
switch. If the plastic housing and the PC board are intact, this kit
replaces all of the functional components on the jack plate.
Part #RK-800 |
$14.95 |
|
Strat™, Stratocaster™, Esquire™, Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™ are registered trademarks of Fender™ Musical Instruments. The replacement necks and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.
Copyright ©2024 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
|
